Pi 3 B+ Rev 1.3 Components

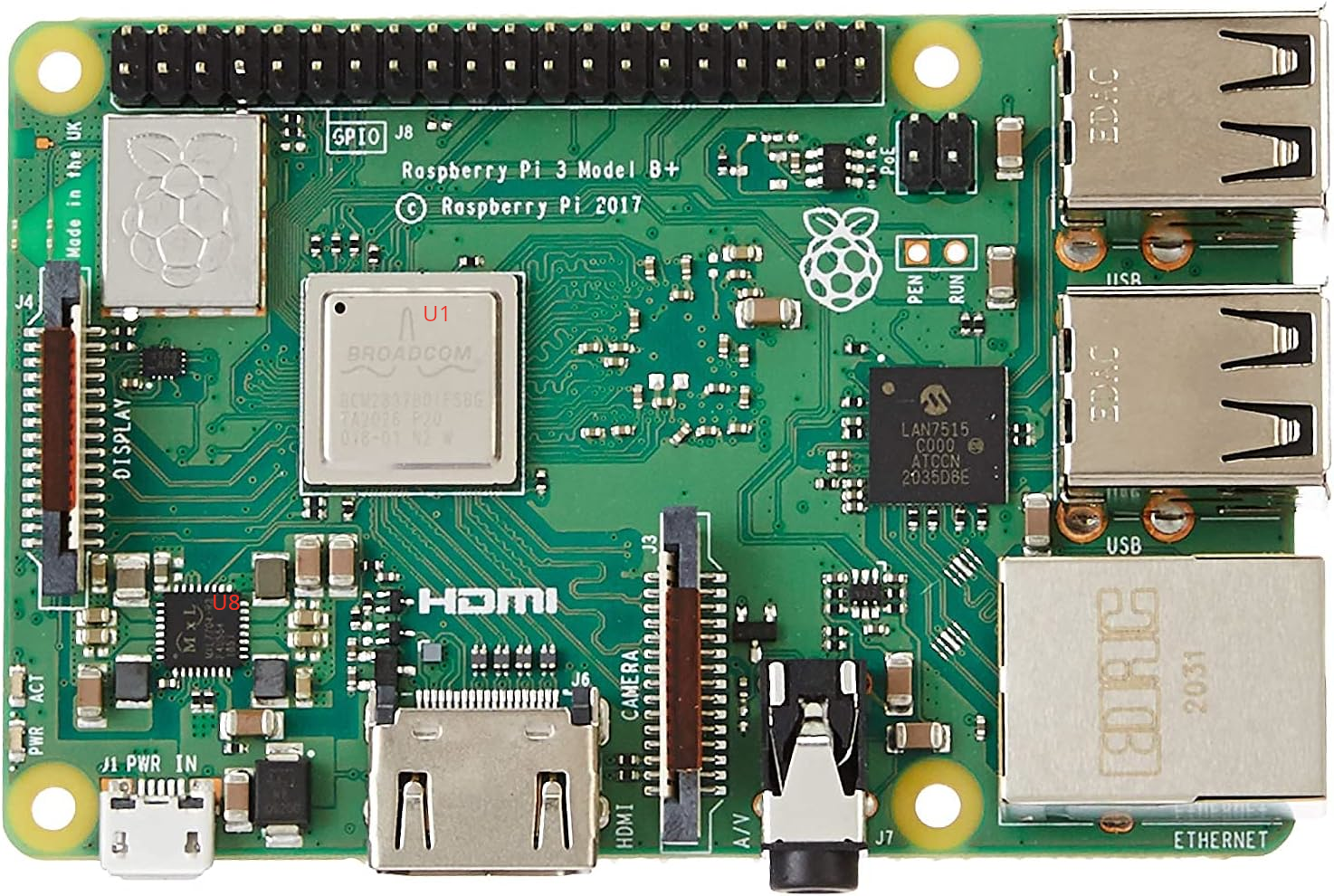

Top

Label	Type	Package	Value	Replacement(s)	Source(s)	Notes
J1	Micro USB				Schematic
J2	2W PIN HEADER				Schematic
J3	Camera				Schematic
J4	Display				Schematic
J5					Schematic
J6	HDMI				Schematic
J7	A/V				Schematic
J8	GPIO				Schematic
J10	Ethernet				Schematic
J14	POE				Schematic
U1*	SOC				Schematic	BCM2837B
U5*					Schematic	BCM2837B
U8*	PMIC	QFN			Schematic	If attempting to source a replacement, it must have `-R3` printed on the chip. This appears to be a custom built IC for RPI.
U9*					Schematic	RT9741CGV
U11*					Schematic	NC7WZ16

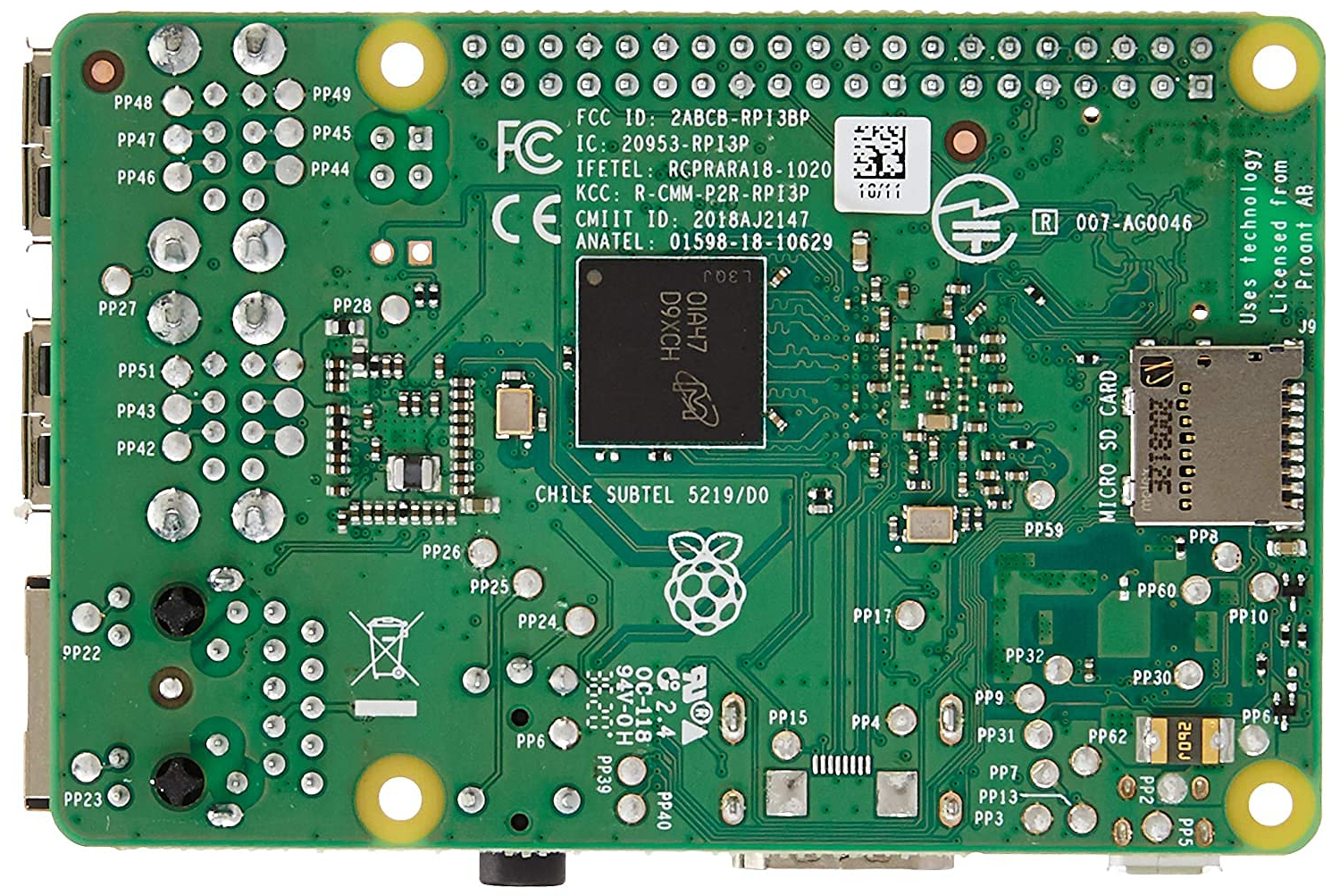

Bottom

Label	Type	Package	Value	Replacement(s)	Source(s)	Notes
J9	MicroSD
