Pi 500¶

Repair reference data for Raspberry Pi 500 boards.

The Pi 500 is a keyboard-integrated computer based on the BCM2712 SoC (same as Pi 5). It does not use a "Model A" / "Model B" designation — there is a single board design with an 8GB RAM configuration. Revisions reflect PCB-level hardware changes.

Board Images¶

Top¶

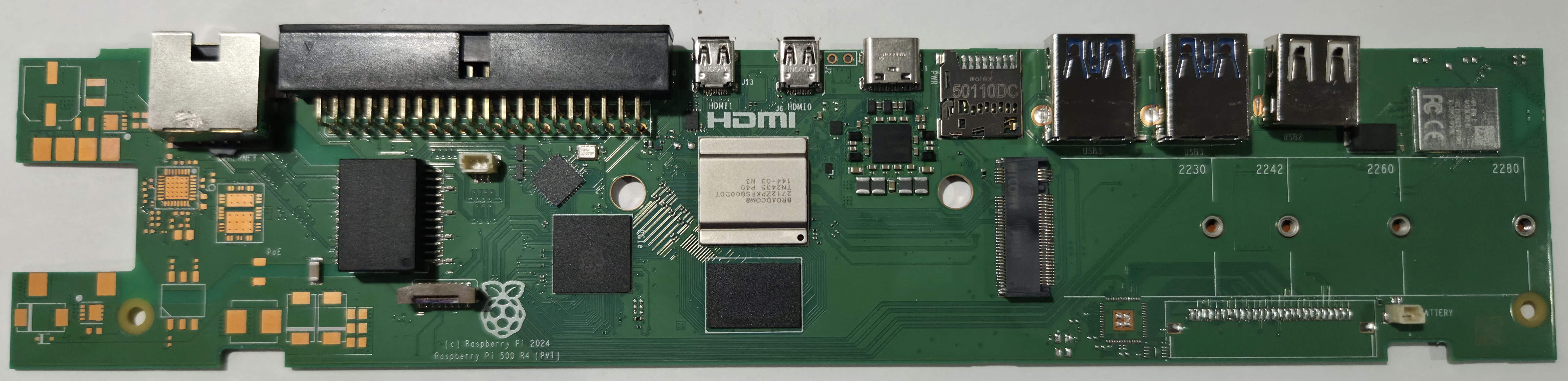

Pi 500 PCB Top

Bottom¶

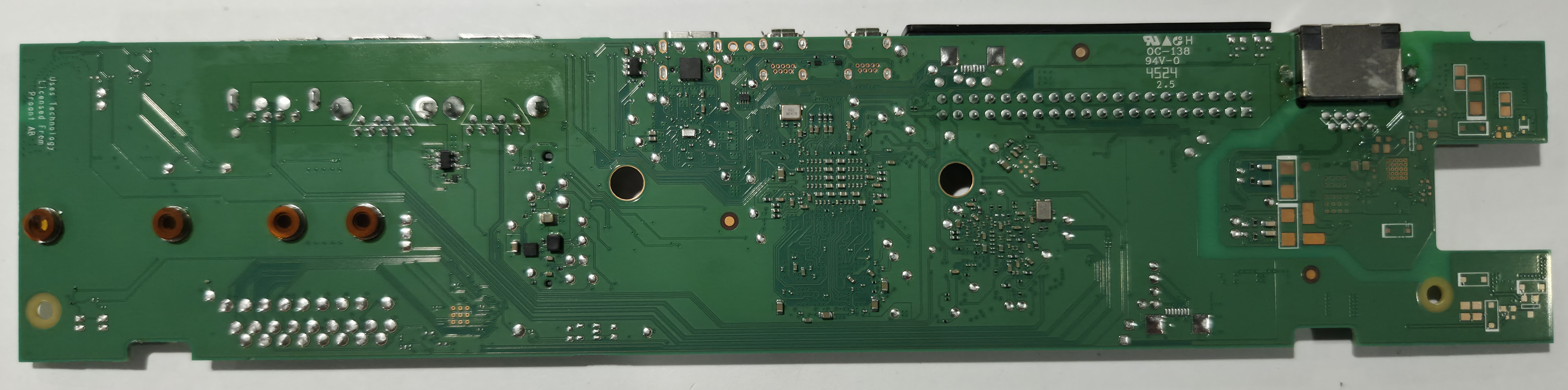

Pi 500 PCB Bottom

Revision Identification¶

If the board boots, the most reliable way to identify the revision is via software. See the Board Identification guide.

For non-booting boards, the following physical attributes can help narrow down the revision:

Revisions¶

Revision	Key Changes
Rev 1.0	Initial release
