Pi 4 B Rev 1.2 Components¶

Top¶

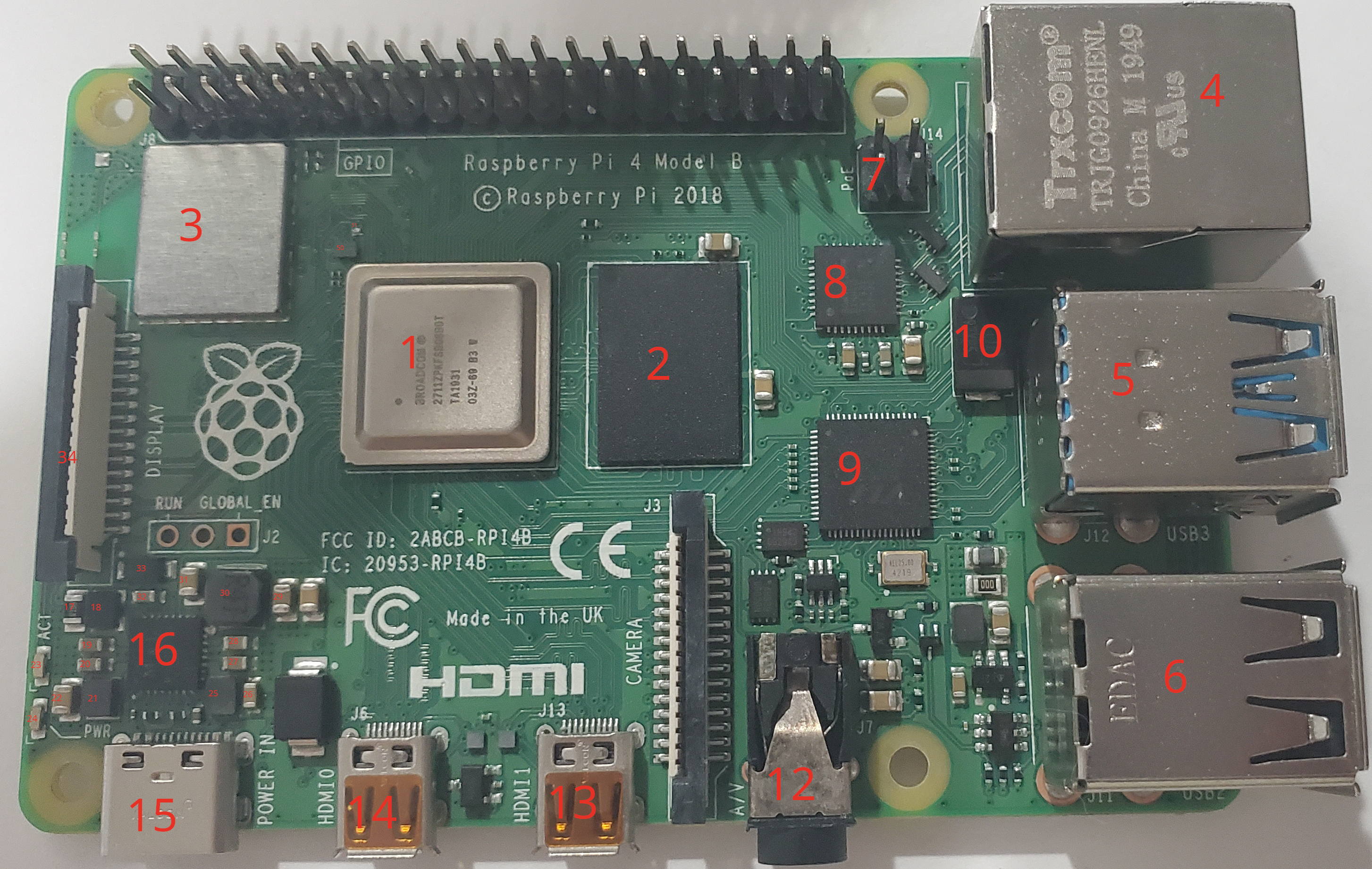

Board Image Top

ID	Type	Package	Value	Replacement(s)	Source(s)	Notes
48	Resistor (Series)		33–34Ω		Self-Measured	SD card CLK series resistor. Upper-left of SOC. Left pad measures ~0.8Ω to SD card slot CLK pin; right pad measures ~34Ω across component.
50	IC Power Switch P-Channel 2:1	6-WLCSP		DigiKey	Raspberry Pi Forum	onsemi FPF1320UCX. Sits beneath the 10Ω 0201 resistor (ID 51).
51	Resistor	0201	10Ω			Raspberry Pi Forum	Sits above the CSP power switch (ID 50). Board reportedly boots with this resistor bridged.

Bottom¶

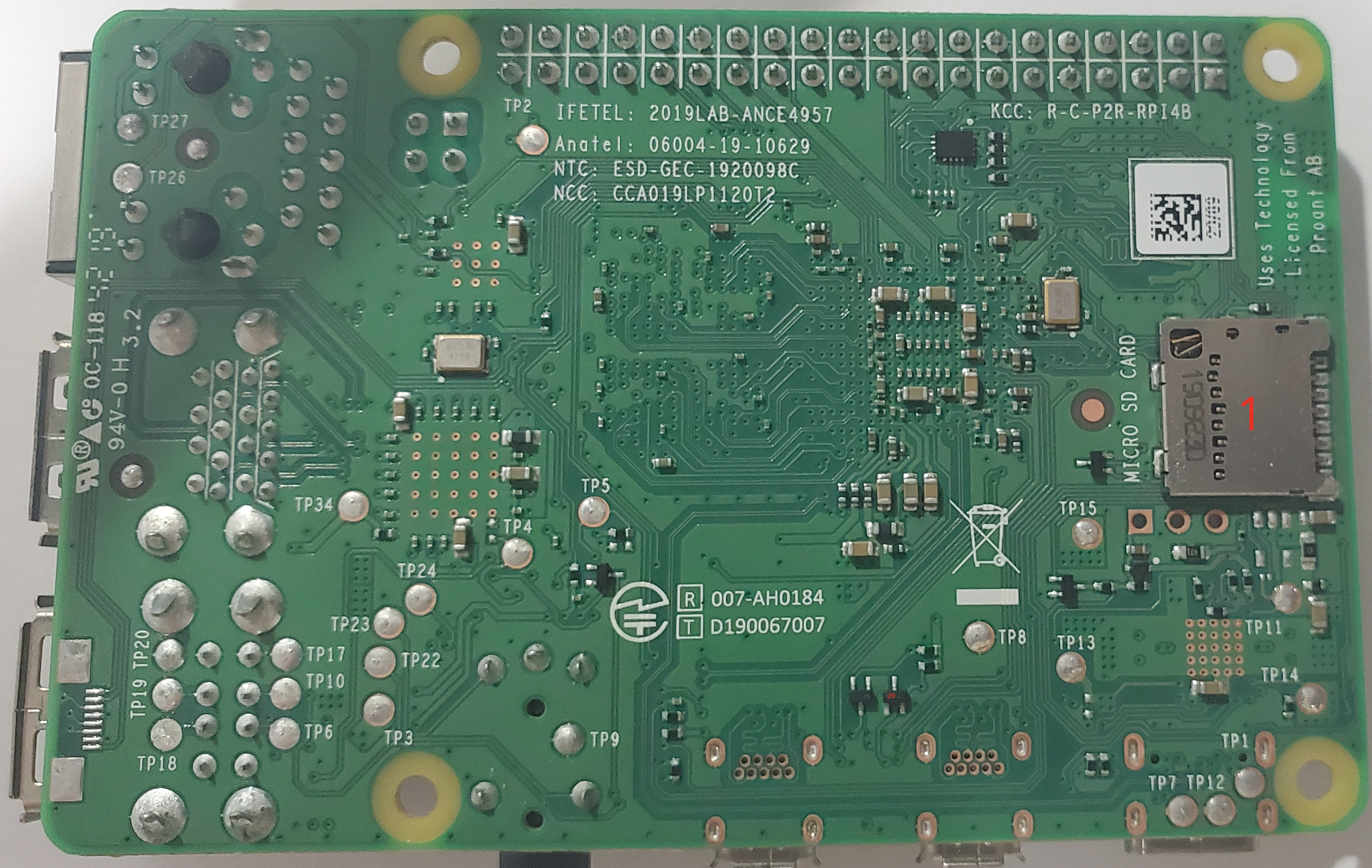

Board Image Bottom

ID	Official Label	Type	Package	Value	Replacement(s)	Source(s)	Notes
1					DigiKey	Raspberry Pi Forum	SD Card Slot
29		Mosfet	SOT-523		DigiKey	Raspberry Pi Forum	DMG1012T
