Pi 5 Components¶

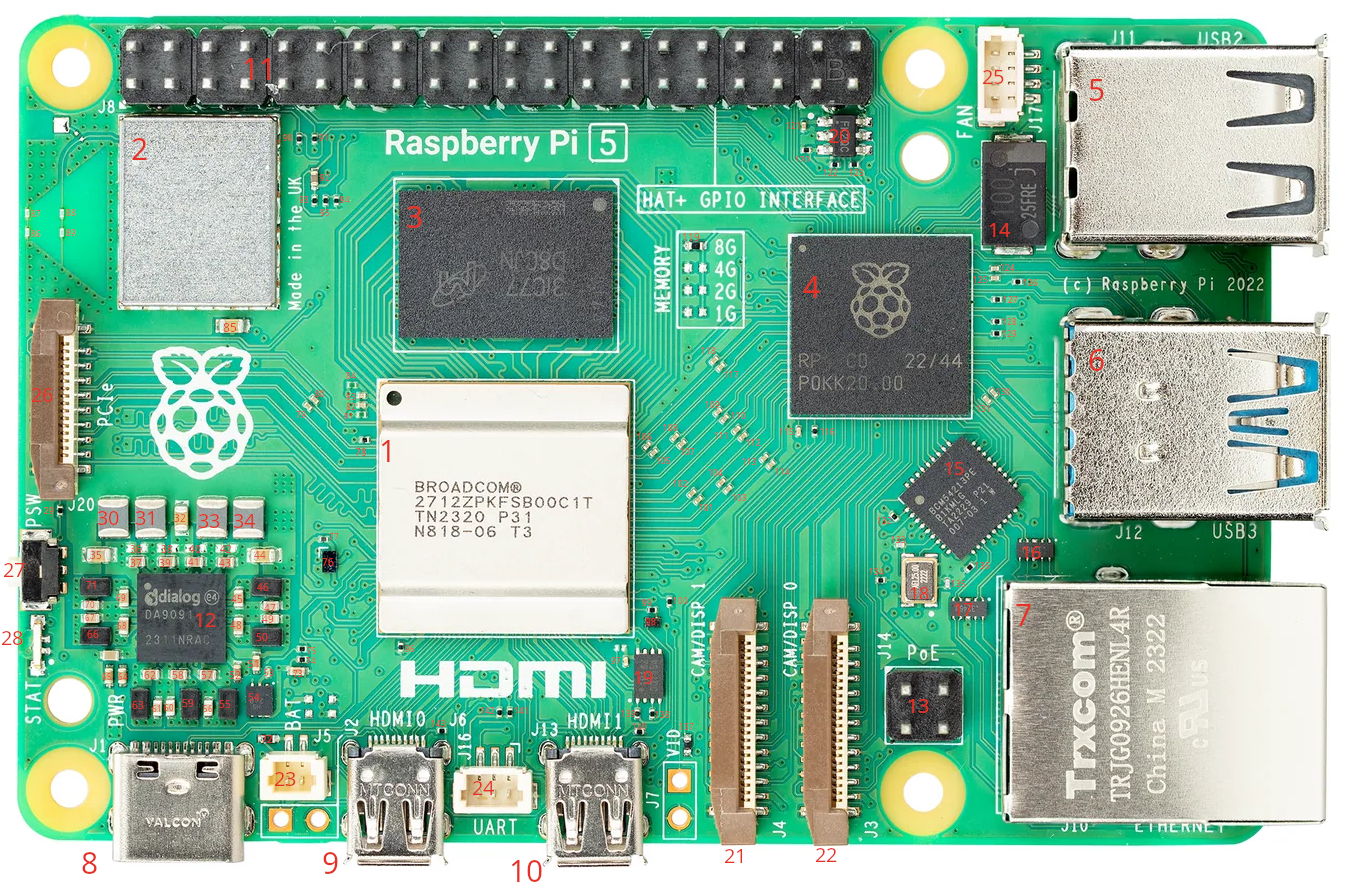

Top¶
| ID | Official Label | Type | Package | Value | Replacement(s) | Source(s) | Notes |
|---|---|---|---|---|---|---|---|
| 1 | SOC | BGA | BCM2712 | ||||
| 2 | BlueTooth/WiFi | ||||||
| 3 | RAM | BGA | |||||
| 4 | I/O Controller | Raspberry Pi Magazine | RP1 (Southbridge) | ||||
| 5 | J11 | USB 2 | |||||
| 6 | J12 | USB 3 | |||||
| 7 | J10 | Ethernet | |||||
| 8 | J1 | USB-C | |||||
| 9 | J2 | HDMI Type D | HDMI0 | ||||
| 10 | J13 | HDMI Type D | HDMI1 | ||||
| 11 | J8 | GPIO Pins | |||||
| 12 | PMIC | QFN |
Pi Hut
Repair Tech Shop |
DA9091 — QFN-71, 6x6mm, 0.4mm pitch. I2C address 0x38. Built-in hot-swap controller for DMG7430LFG MOSFET.
More Info |
|||
| 13 | J14 | POE Pins | |||||
| 14 | |||||||
| 15 | |||||||
| 16 | |||||||
| 17 | |||||||
| 18 | |||||||
| 19 | |||||||
| 20 | Load Switch | SOT-26 | 2.1A | DigiKey | Raspberry PI Forum | AP22652W6-7 | |
| 21 | J4 | CAM/DISP 1 | |||||
| 22 | J3 | CAM/DISP 0 | |||||
| 23 | J5 | BAT | |||||
| 24 | |||||||
| 25 | J17 | Fan | |||||
| 26 | J20 | PCIe | |||||
| 27 | PSW | DigiKey | Raspberry Pi Forum | Physical Power Switch | |||
| 28 | STAT | Status LED (Red/Green) | |||||
| 30 | Inductor | Raspberry Pi Magazine | |||||
| 31 | Inductor | Raspberry Pi Magazine | |||||
| 33 | Inductor | Raspberry Pi Magazine | |||||
| 34 | Inductor | Raspberry Pi Magazine | |||||
| 46 | Inductor | Raspberry Pi Forum |
Bourns part number SRP201208-R47MH
Inductor, SMT, 0805, 470n, IRMS=4A, ISAT=4.6A, DCR(max)=35mR |
||||
| 65 | Capacitor | 0402 | 4.7µF | Raspberry Pi Forum | Near the PWR silkscreen | ||
| 66 | Capacitor | 0402 | 4.7µF | Raspberry Pi Forum | Near the PWR silkscreen | ||
| 71 | Inductor | Raspberry Pi Forum |
Inductor, SMT, 2012, 470n, IRMS=4A, ISAT=4.6A, DCR(max)=35mR
Near PMIC |
||||
| 103 | Capacitor | 0201 | 100nF | Raspberry Pi Forum | 100n 6.3V 10% X5R 0201 | ||
| 104 | Capacitor | 0201 | 100nF | Raspberry Pi Forum | 100n 6.3V 10% X5R 0201 | ||
| 143 |

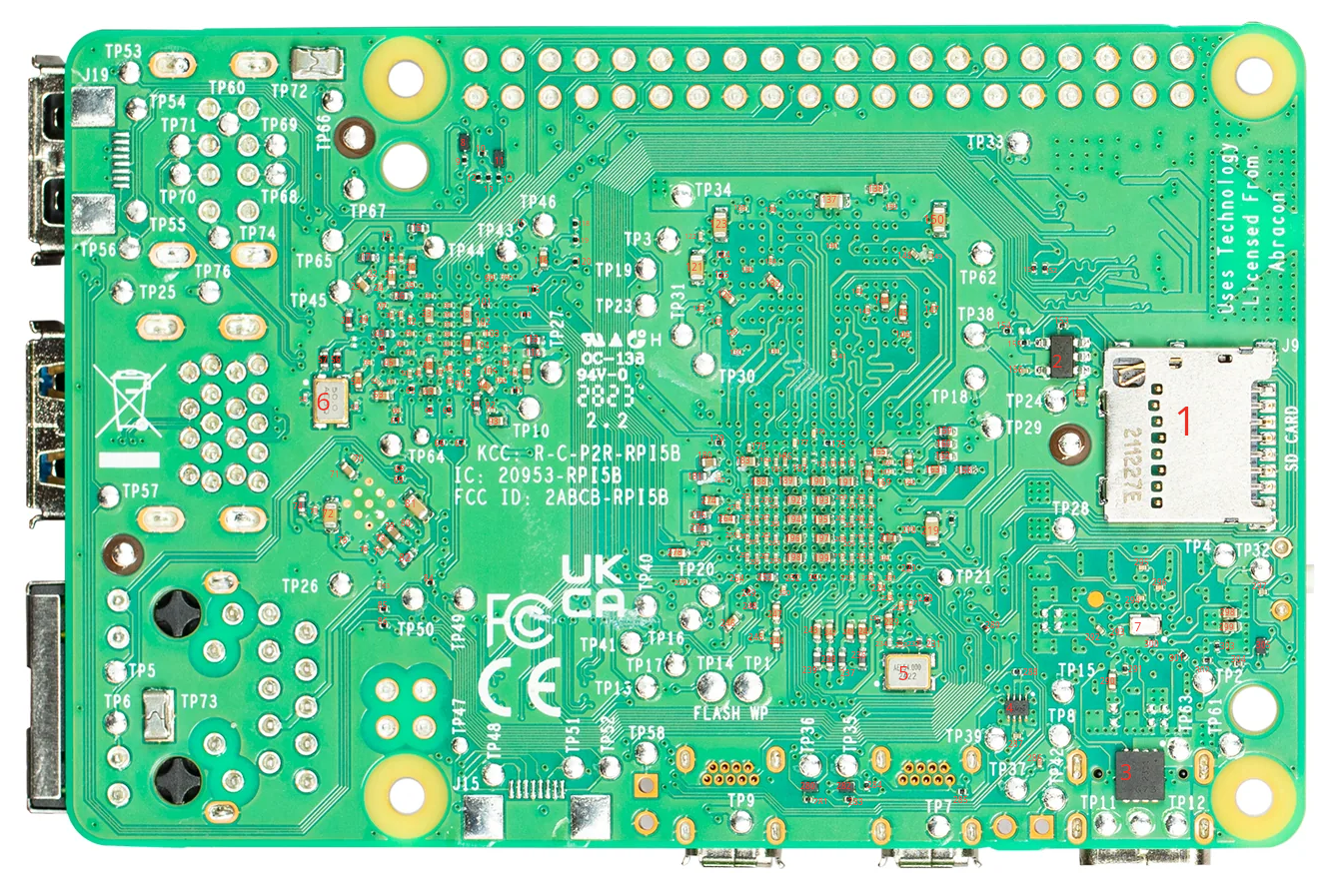

Bottom¶
| ID | Official Label | Type | Package | Value | Replacement(s) | Source(s) | Notes |
|---|---|---|---|---|---|---|---|
| 1 | J9 | DigiKey | Micro SD Card Slot | ||||
| 3 | N-Channel Mosfet | DigiKey | CM5 Reverse Engineering |
DMG7430LFG-7
Hot-swap / inrush current limiting MOSFET. Gate driven by DA9091 PMIC pin 22. Drain sensed by PMIC pin 21. ~400µs ramp-up time. |
|||
| 8 | N-Channel Mosfet | DFN1006B-3 | 20V | Nexperia | Raspberry Pi Forum | PMZB600UNEL - 20 V, N-channel Trench MOSFET. | |
| 11 | N-Channel Mosfet | DFN1006B-3 | 20V | Nexperia |
Raspberry Pi Forum
Raspberry Pi Forum |
PMZB600UNEL - 20 V, N-channel Trench MOSFET. Used for fan PWM speed control.
Board can still be used without this if not using the fan, provided remaining solder is not shorting the pads (difficult to see in the photo). |
|
| 17 | Ferrite Bead | 0402 | 220 Ω | Raspberry Pi Forum |
Murata BLM15PX221SN1D 220 Ohms @ 100 MHz 1 Power Line Ferrite Bead 0402 (1005 Metric) 1.4A 100mOhm
Near TP65 |
||
| 34 | Capacitor | 0201 | Raspberry Pi Forum | MLCC, 100n, 0201 (M0603), 6.3V, 10%, X5R | |||
| 66 | R46 | Resistor | 0201 | 2K Ω | Raspberry Pi Forum | Near TP64 | |
| 67 | R47 | Resistor | 0201 | 2K Ω | Raspberry Pi Forum | Near TP64 | |
| 68 | R17 | Resistor | 0201 | 470 Ω | Raspberry Pi Forum | Near TP64 | |
| 69 | R15 | Resistor | 0201 | 470 Ω | Raspberry Pi Forum | Near TP64 | |
| 72 | C234 | Capacitor | 0603 | 22uF | DigiKey | Raspberry Pi Forum |
22uF 6V3 X5R 10%
Just north of TP26 |
| 99 | Capacitor | 0402 | 15µF | DigiKey | Raspberry Pi Forum | 15µF ±20% 6.3V X5R 0402 | |
| 115 | Resistor | 0201 | 18K Ω | Raspberry Pi Forum |
18K 1% 50mW 0201.
Associated with the status LED, so its absence should not affect board stability. |
||
| 116 | C263 | Capacitor | 0402 | 4u7 | Raspberry Pi Forum |
4u7 6V3 X5R 20% 0402
Near TP46 |
|
| 117 | Resistor | 0201 | 1K Ω | Raspberry Pi Forum | 1K 1% 50mW 0201. | ||
| 118 | R93 | 0201 | 10K Ω | Raspberry Pi Forum | Near TP46 | ||
| 123 | Capacitor | 0603 | 22uF | Raspberry Pi Forum |
ceramic capacitor.
22uF, 6.3V, X5R, 20%, 0603.
Near TP34 |
||
| 229 | Capacitor | 0402 | 4u7 | Raspberry Pi Forum | MLCC, 4u7, 0402, 6.3V, 20%, X5R | ||
| 230 | Resistor | 0201 | Raspberry Pi Forum | Resistor, Chip, 1R, 0201, 50mW, 1% | |||
| 285 | Capacitor | 0201 | 1uF | DigiKey | Raspberry Pi Forum |
Murata Electronics GRM033R60J105ME11D Located between TP37 & TP8 Used to stabilise the Real Time Clock battery rail. |
|
| 301 | Resistor | 0201 | 1K Ω | Raspberry Pi Forum | Midway between SD Slot and U12 | ||
| 302 | Resistor | 0201 | 10K Ω |
Raspberry Pi Forum
Raspberry Pi Forum |
Power button will not respond with this missing.
Midway between SD Slot and U12 |
||
| 303 | Resistor | 0201 | 2K Ω |
Raspberry Pi Forum
Raspberry Pi Forum |
If the red part of the status led works then this component is okay.
Midway between SD Slot and U12 |
||
| 304 | Resistor | 0201 | 18K Ω | Raspberry Pi Forum | Near TP2 | ||
| 305 | Mosfet | Raspberry Pi Forum |
PMZB600UNELYL N-Channel 20 V 600mA (Ta) 360mW (Ta) Surface Mount DFN1006B-3
Near TP2 |
||||
| 180 | Capacitor | 0402 | 4u7 | DigiKey | Raspberry Pi Forum | Murata GRM155R60J475ME47D — MLCC, 4u7, 0402 (M1005), 6.3V, 20%, X5R | |
| 181 | Ferrite Bead | 0402 | 220 Ω | DigiKey | Raspberry Pi Forum | Murata BLM15PX221SN1D — 0402 (M1005), 220R @ 100MHz, 100mR, 1.4A | |
| 182 | Capacitor | 0201 | 10nF | DigiKey | Raspberry Pi Forum | Murata GRM033R71A103KA01D — MLCC, 10n, 0201 (M0603), 10V, 10%, X7R | |
