Pi 5

Repair reference data for Raspberry Pi 5 boards.

The Pi 5 does not use a "Model A" / "Model B" designation — there is a single board design with multiple RAM configurations (1GB, 2GB, 4GB, 8GB, 16GB). Revisions reflect PCB-level hardware changes.

Board Photos

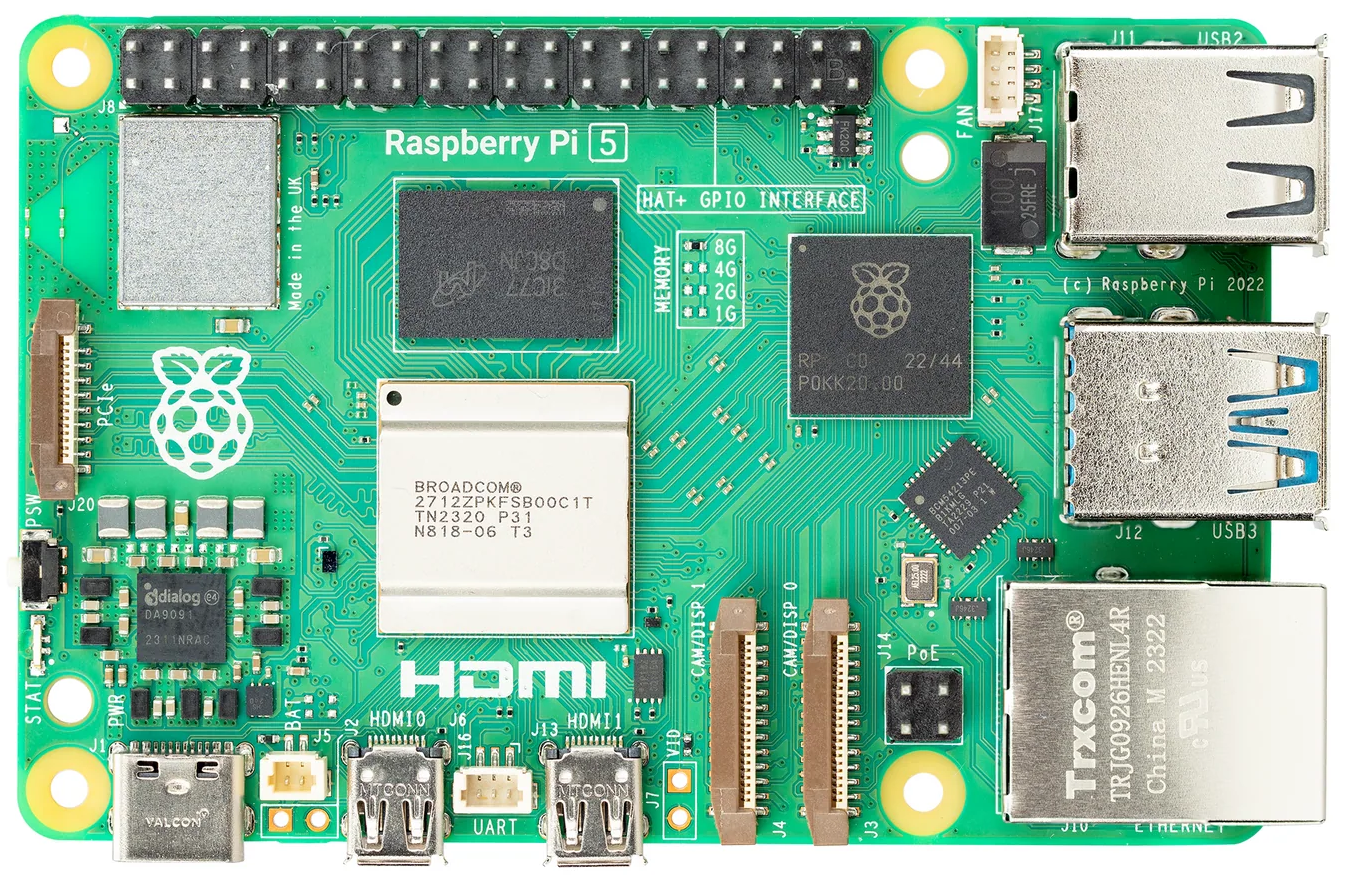

Pi 5 board top
Top

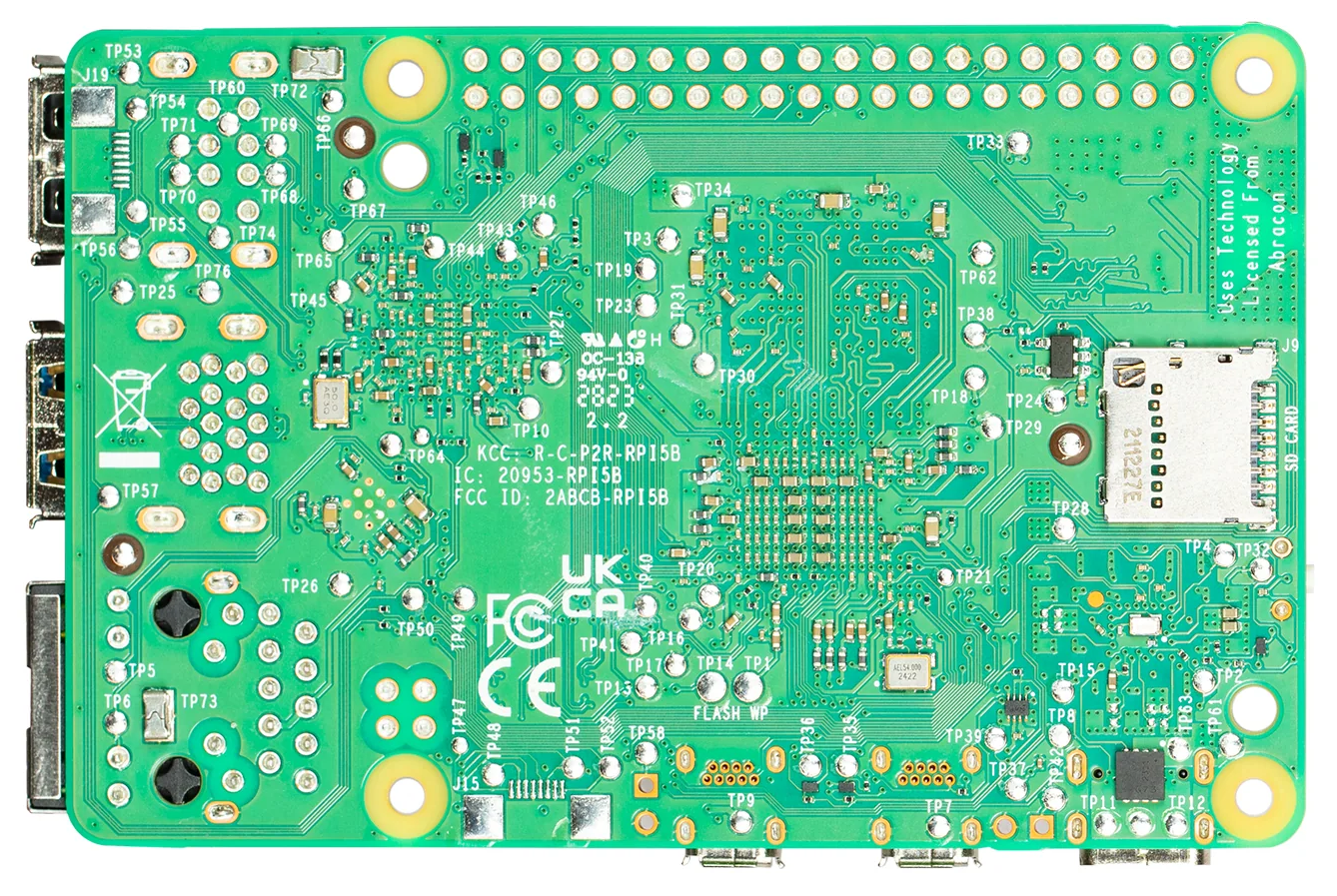

Pi 5 board bottom
Bottom

Revision Identification

If the board boots, the most reliable way to identify the revision is via software. See the Board Identification guide.

For non-booting boards, the following physical attributes can help narrow down the revision:

Revisions

Revision Key Changes
Rev 1.1 NUMA support, performance tweaks
Rev 1.0 Initial release

Disclaimer: Information provided "as is" with no guarantee of accuracy. Board-level repair involves risk — you accept full responsibility for any outcomes. Not professional repair advice. Full disclaimer.
