Pi 5 Rev 1.1 - Voltage Reference¶

Power Only¶

The following readings have been taken from a Pi 5 (Rev 1.1) with nothing attached except power. No Display, no SD Card, nothing...

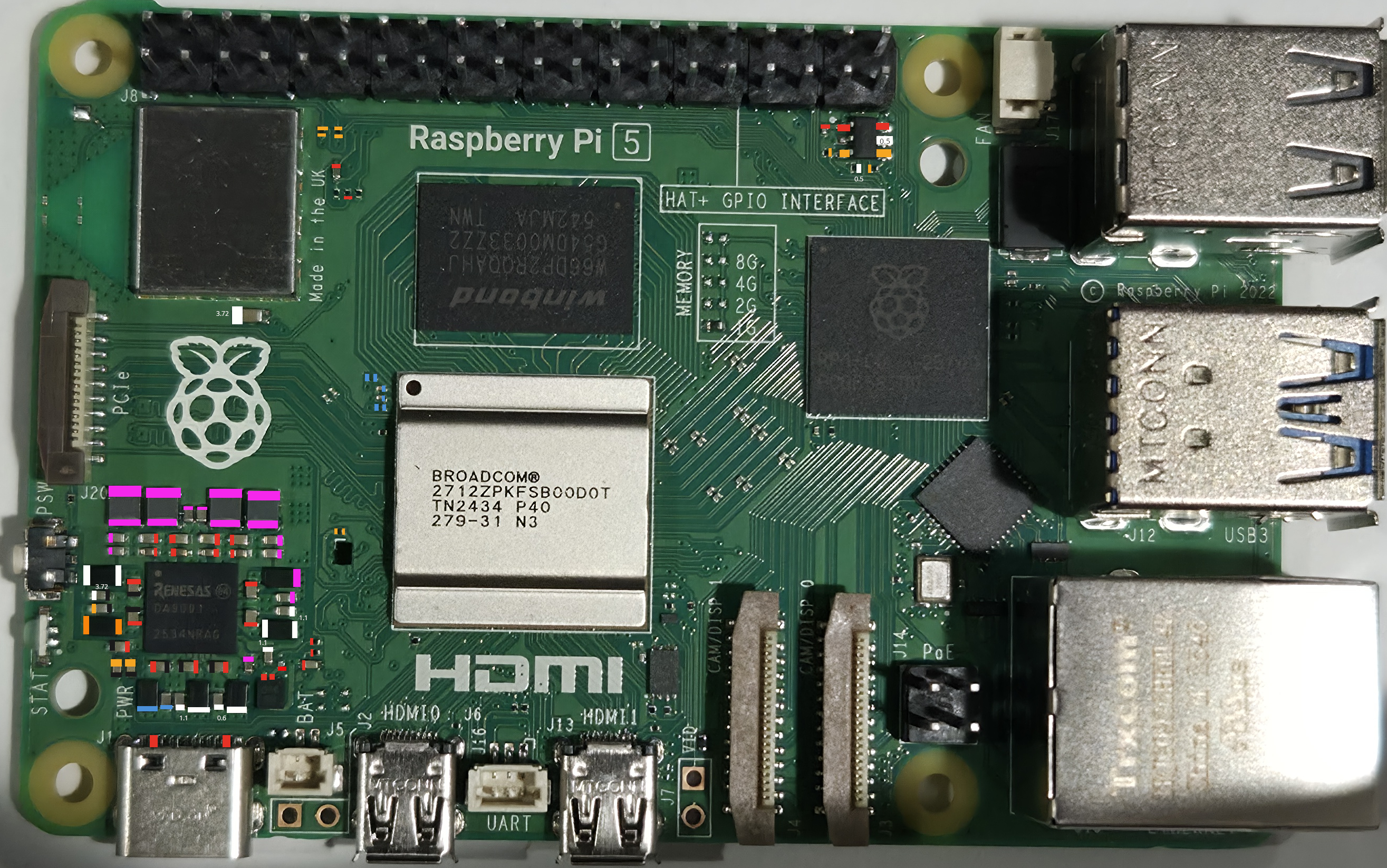

Top¶

Top Voltage Reference

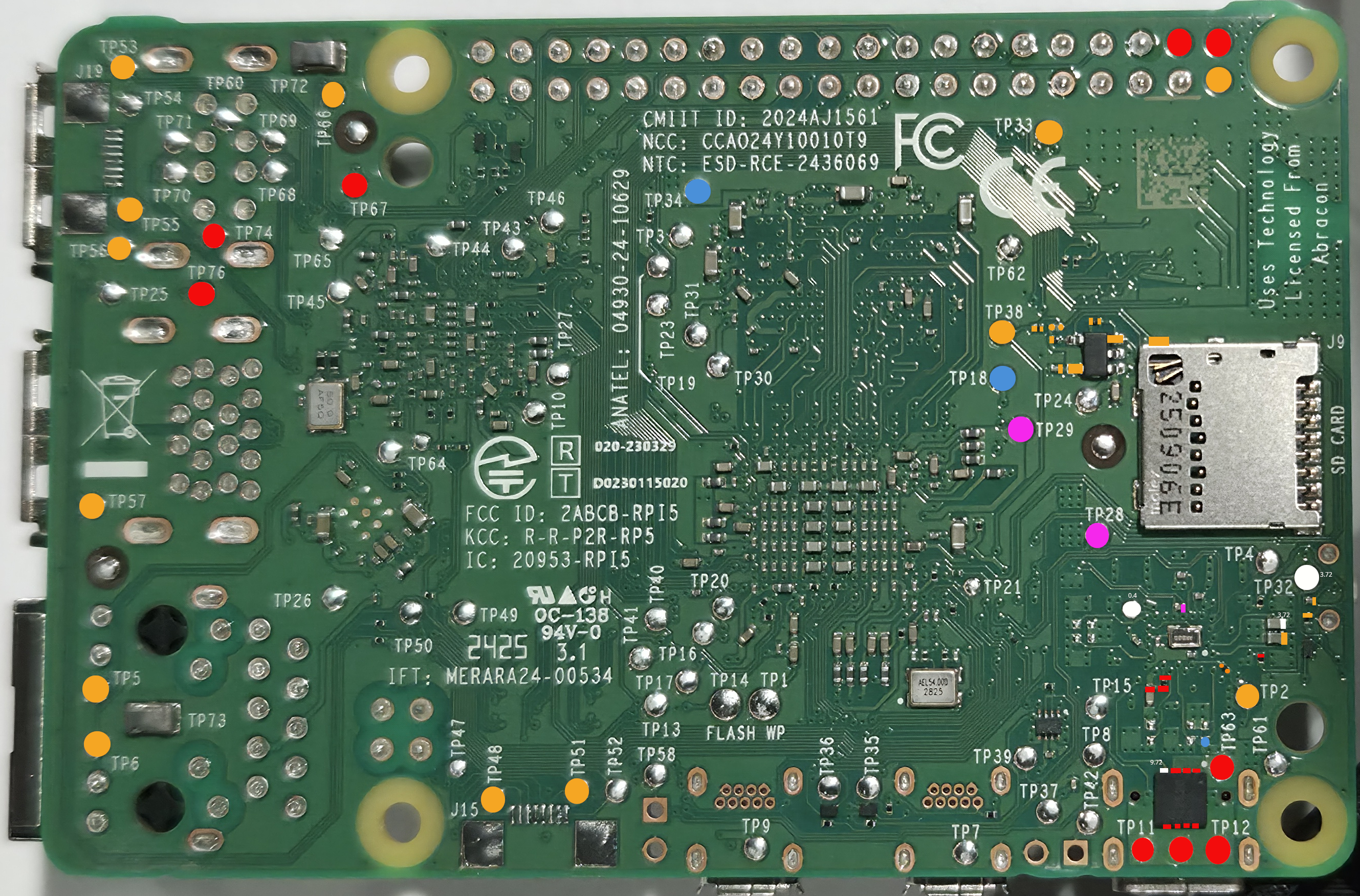

Bottom¶

Bottom Voltage Reference

Legend¶

Color	Rail
	Ground
	5v
	3.3v
	1.1v
	1.8v
	0.8v
	Other

Disclaimer: Information provided "as is" with no guarantee of accuracy. Board-level repair involves risk — you accept full responsibility for any outcomes. Not professional repair advice. Full disclaimer.
